SoCool™
User's Guide
Everything you need to set up, use, and keep SoCool running perfectly.
Key Features
Keeps food at genuine refrigerated temperatures of 40°F and below. Your pet gets fresh food every time, no compromising.
Up to 10 custom feeding schedules. Set it and forget it, SoCool handles the rest.
Manage schedules, trigger a manual feed, and reset remotely from anywhere.
Tray, stainless steel inserts, and lids are dishwasher safe (top rack only). Wipe the feeder body and lid with a damp cloth.

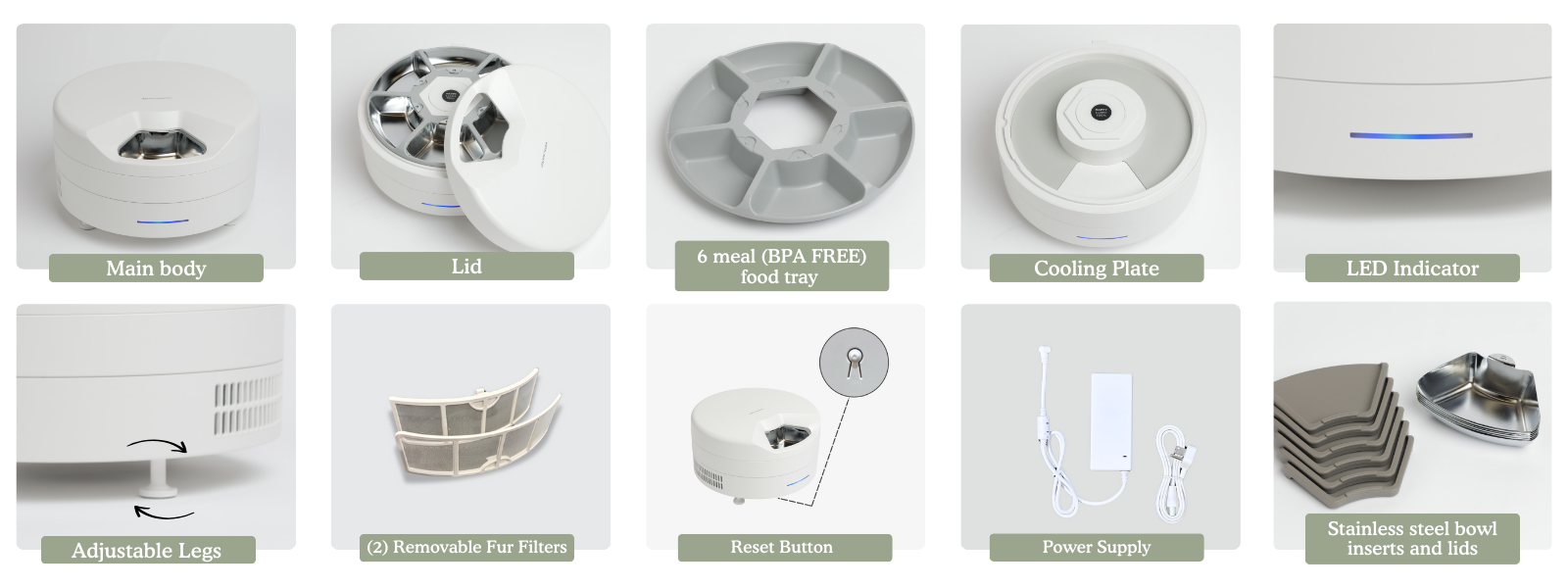

What's in the Box
First-Time Setup
Up and running in under 10 minutes
Follow the steps below in order. Most setup issues come from skipping the firmware update or missing the packing foam under the tray, both are covered below.
-
1Remove all packing materials. Check under and above the plastic tray and under the legs for packing foam, and all of them must be removed before first use. Watch the unpacking video →
-
2Stainless steel inserts (optional). If using stainless steel inserts, place them in the tray slots now. If your order includes silicone storage lids, watch this short video for helpful hints →
-
3Plug in and power on. Use only the included adapter. The LED indicator will light up. Ensure the power cable is out of foot traffic.
-
4Download the SmartLife app. Available on the App Store and Google Play. Create an account and log in. For detailed setup instructions, see the SmartLife guide.
-
5Pair SoCool. Put SoCool into pairing mode by holding the reset button (under the front of the device) for 5 seconds — you'll hear a long chime and see a pulsing white LED. In the app, tap +, select HAPPYLLAMATECH, enter your Wi-Fi password, and follow prompts.
-
6Update firmware immediately. After pairing, go to Settings in the app and install any available firmware update. We regularly release improvements based on customer feedback, keeping firmware current is the single best thing you can do for reliability.

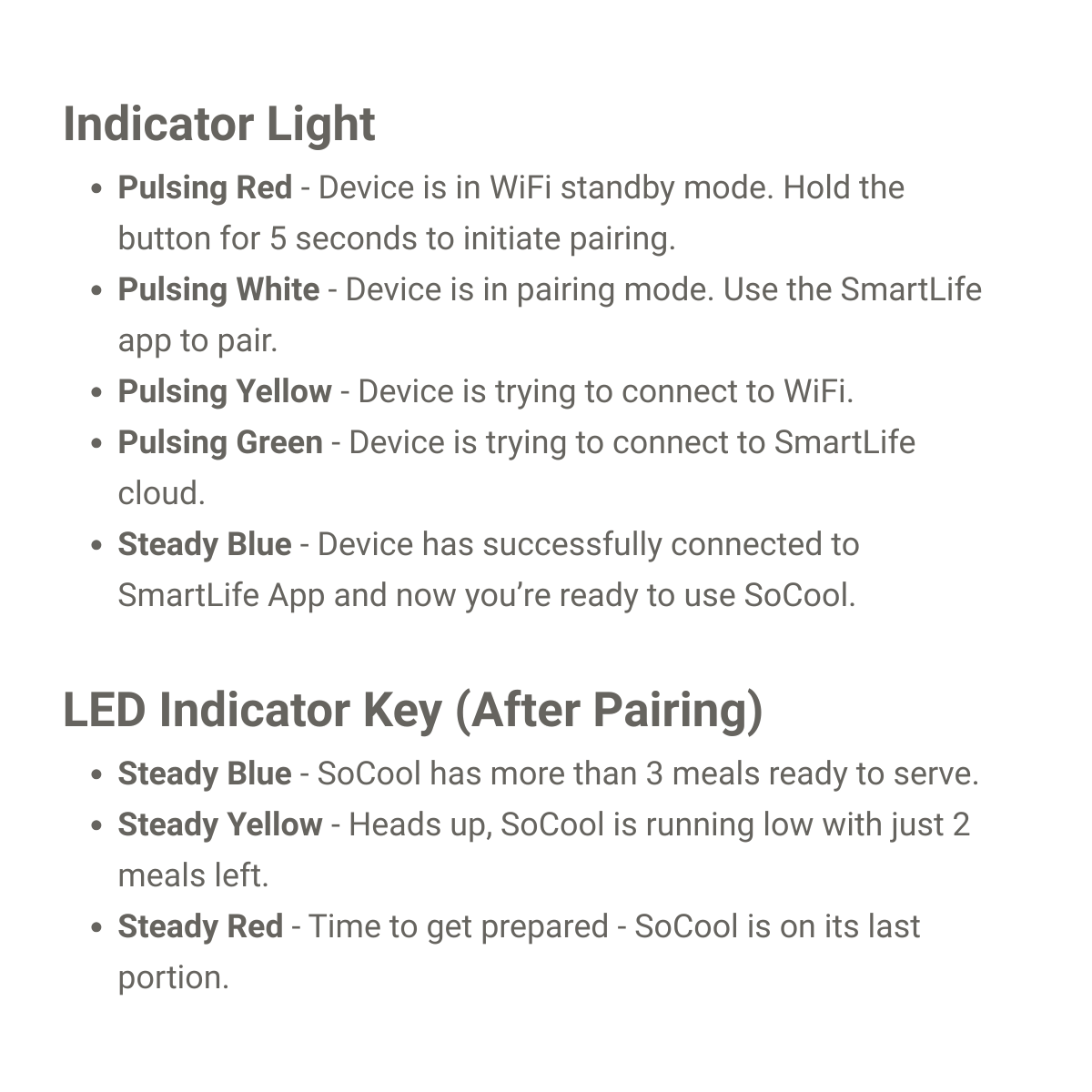

Indicator Light
WiFi & Pairing
Pulsing = slow smooth fade in/out · Flashing = rapid strobe
- Pulsing Red — Standby mode. Hold the button for 5 seconds until you hear a long chime to initiate pairing.
- Pulsing White — Pairing mode. Use the SmartLife app to pair.
- Pulsing Yellow — Trying to connect to WiFi (2.4 GHz).
- Pulsing Green — Trying to connect to SmartLife cloud.
- Steady Blue — Successfully connected. You're ready to use SoCool.
LED Indicator Key (After Pairing)
- Steady Blue — More than 3 meals ready to serve.
- Steady Yellow — Running low — 2 meals remaining.
- Steady Red — Last portion. Refill soon.
- Flashing Yellow — Tray rotation interrupted, likely due to ice buildup. See Maintenance.
- Flashing Red — Error detected. Contact support@happyllamatech.com.
If "Stop Delivery After 5th Rotation" is disabled, SoCool does not track meal count, you will only see steady blue.
Using SoCool
Setting Up Feeding Schedules
In the SmartLife app, tap Meal Plan → Add, select the days and times, then tap Save in the upper right. You can create up to 10 schedules. Enable or disable the audible alert per meal, handy for quiet overnight feedings.
Auto Stop
Auto Stop ("Stop Delivery After 5th Rotation" setting) is off by default. When enabled, SoCool stops rotating after the 5th meal to prevent older food from being served. A red light appears after the final rotation ... this is a reminder, not an error.
To resume: press the reset button on the device, or tap "Reset Counter" in the app. Best for anyone loading 5 meals at once who wants automatic protection against stale food.
App Settings at a Glance
Toggle the meal-delivery chime on or off per schedule, perfect if your pet doesn't need the reminder.
Adjust the indicator light brightness under Settings, good for light-sensitive spaces.
View the last 7 days of feeding records directly in the app to verify meals were delivered.
Rename SoCool in the app (e.g., "Mia's Feeder"), especially useful with multiple devices.
Maintenance
Condensation & the Cooling Plate
SoCool reaches true refrigeration temperatures. The cooling plate often operates near freezing. Condensation that accumulates inside the chamber can freeze to the bottom of the tray, preventing it from rotating and causing missed feedings or flashing indicator lights.
A 30-second weekly wipe prevents this entirely. The easiest time to do it is when you're already refilling the tray.
Troubleshooting
| Symptom | Likely Cause | Fix |
|---|---|---|
| Tray not rotating | Packing foam still in place, or frozen condensation on cooling plate | Remove all packing material including foam between tray and cooling plate. If foam is gone, unplug for a few minutes, wipe the cooling plate dry, and restart. |
| Steady red light on, no rotation | Auto Stop triggered after 5th meal (this is normal, not an error) | Press the reset button under the front of the device, or tap "Reset Counter" in the SmartLife app. |
| Skipped feeding | Ice buildup on cooling plate, or schedule set under 6 minutes ahead | Wipe the cooling plate. Check that your next scheduled meal is at least 6 minutes in the future. |
| Strobing yellow LED | Tray rotation blocked by ice or debris | Tap "Maintenance" on the home page of the app, let thaw for 5 minutes, wipe accumulated condensation from cooling plate. |
| Device not cooling well | Fur filters clogged | Remove and clean both fur filters under the device. Ensure at least 1" of clearance underneath. If using stainless steel inserts, ensure the toggle in Settings is enabled. |
| App won't connect | Phone on 5 GHz Wi-Fi | Ensure phone is connected to 2.4 GHz WiFi. SoCool supports 2.4GHz only. |
| Device not powering on | Loose connection or outlet issue | Check both ends of the power cable, try a different outlet. Only use the included adapter. |

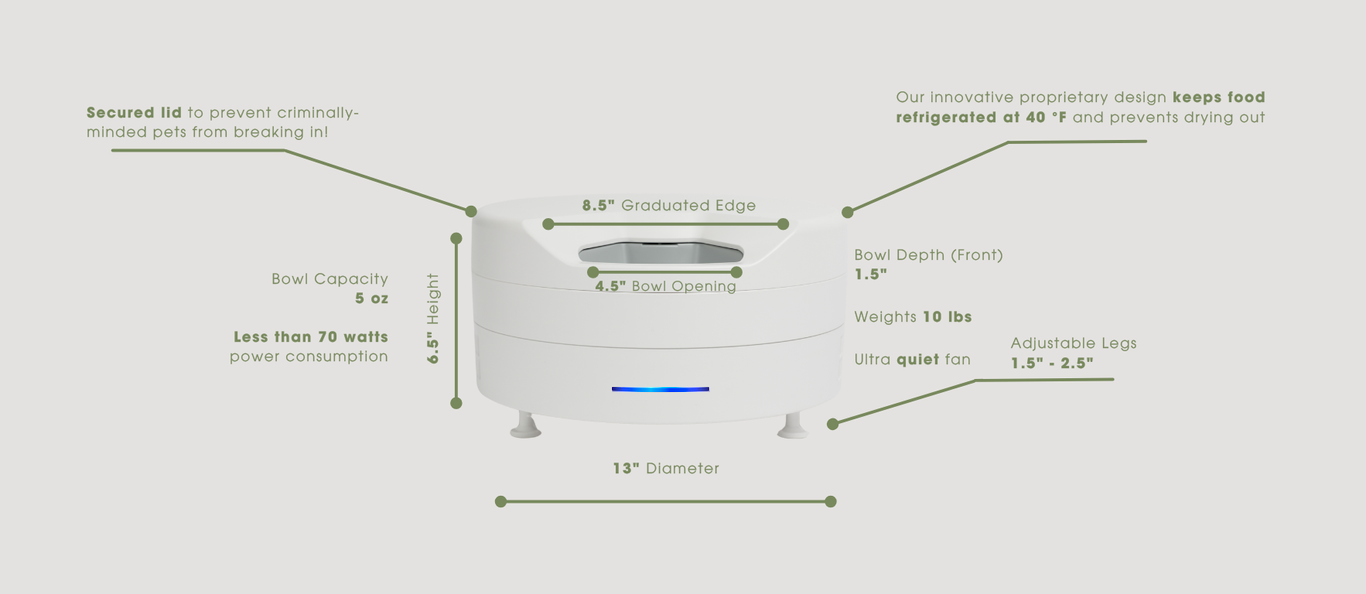

Specifications
| Dimensions | 6.5" tall (without legs) · 13" diameter · 4.5" bowl opening · 8.5" graduated edges · Bowl depth 1.5" |
|---|---|
| Adjustable Legs | 1.5" – 2.5" height range |
| Weight | 10 lbs |
| Bowl Capacity | 5 fl oz (148 ml) per compartment · 6 compartments |
| Power Consumption | 70 watts at full cooling power |
| Rated Input | DC 19.5V, 5A · Adapter: 100–240V AC (universal) |
| Connectivity | Wi-Fi 2.4 GHz · SmartLife app (iOS & Android) |
| Operating Temperature | 16°C – 26°C (60°F – 80°F) ambient |
| Scheduling | Up to 10 feeding schedules |
| Regulatory | FCC Part 15 Class B compliant |
Safety & Regulatory
- Read all instructions before using SoCool.
- Use SoCool only for its intended purpose as a pet feeder.
- Do not immerse the lid or body in water. Wipe clean with a damp cloth only.
- Only use the power adapter provided with SoCool.
- Unplug before cleaning and when not in use for extended periods.
- Do not obstruct the cooling vents. Maintain at least 1" of clearance underneath.
- Use on a level, dry surface indoors only.
- Keep out of reach of children. Not intended for pets under 1 year of age.
- Do not disassemble or modify SoCool. Only use manufacturer-approved accessories.
- Position the power cable out of foot traffic to prevent tripping.
- Inspect before use. Do not plug in if water is present on the cable or plug.
- For long-term storage, unplug SoCool and allow the interior to fully dry before putting it away. Leave the lid open for several hours to ensure no moisture remains, as storing with a damp interior can lead to mold or odors.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the responsible party could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules.
This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.
Warranty & Support
We're here to help
Have a question that isn't answered here, or want to leave us feedback? Our team reads every message and responds within one business day.
support@happyllamatech.com
